Chemgrout

CG-570 Thick-Mix/Mortar Series

Request Pricing Info
  • The ChemGrout CG-570 Thick Mix Series includes both skid and trailer mounted grout plants.
  • This machine will continuously mix and pump the widest range of grouting materials from thin to thick consistencies.

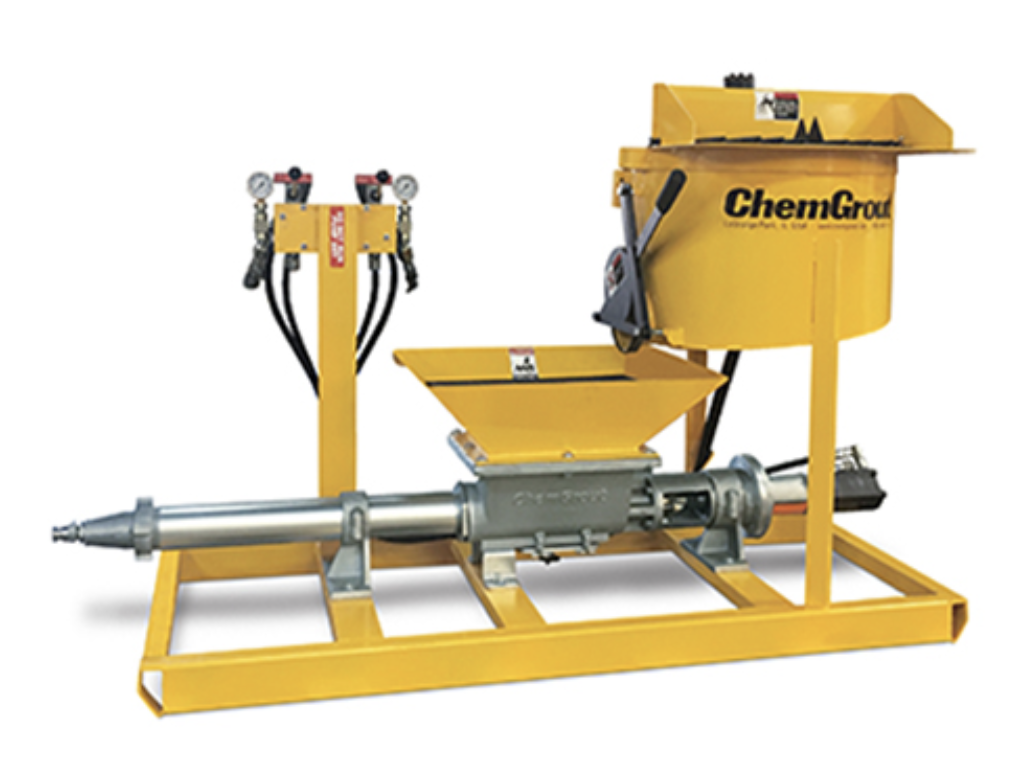

CG 570 Sprayer Series

Features

  • The mixing tank contains no baffles, but instead equipped with variable speed, high-efficiency paddles with wiper blades that prevent material build up and provide rapid mixing.
  • The grout pump is a Size 6, 3 stage, variable speed, positive displacement, progressive cavity, rotor-stator pump that delivers up to 8 GPM, 500 PSI.

  • These units can be powered by compressed air or their own hydraulic power systems that feature 15 HP Electric motor, 20 HP Gasoline engine or 20 HP Diesel engine, both equipped with electric start.
  • The optional air compressor allows the operator to continuously mix, pump and spray.
  • The rugged steel frame stands up to the toughest conditions on the job site.

Product Overview

Description

The ChemGrout CG-570 Thick Mix Series includes both skid and trailer mounted grout plants.

Materials that are used with this unit include Repair Mortars, Gel Mortars, Stucco, Fireproofing Plastering, EIFS, cement/masonry sand, cement/fly ash, flowable and non-flowable grouts and Bentonite waterproofing grouts.

Applications: Anchoring rock bolts, repair mortar spraying, undersealing, slab raising, underlayments, spraying bonded overlays, bridge rehab, dowel bars, and manhole sealing.

Product Specification Sheet

Product Specification Sheet
