Chemgrout

CG-580 High Pressure Series

Request Pricing Info
  • ChemGrout CG-580/3.5X8 series is a high production volume, high pressure skid mounted grout plant.
  • This versatile unit is designed to mix and pump neat cement, bentonites, lightly sanded grouts and most commercial pre-blended non-shrink grout mixes.
  • The unique double mix tank design permits continuous pumping as each mix tank alternates feeding the pump.

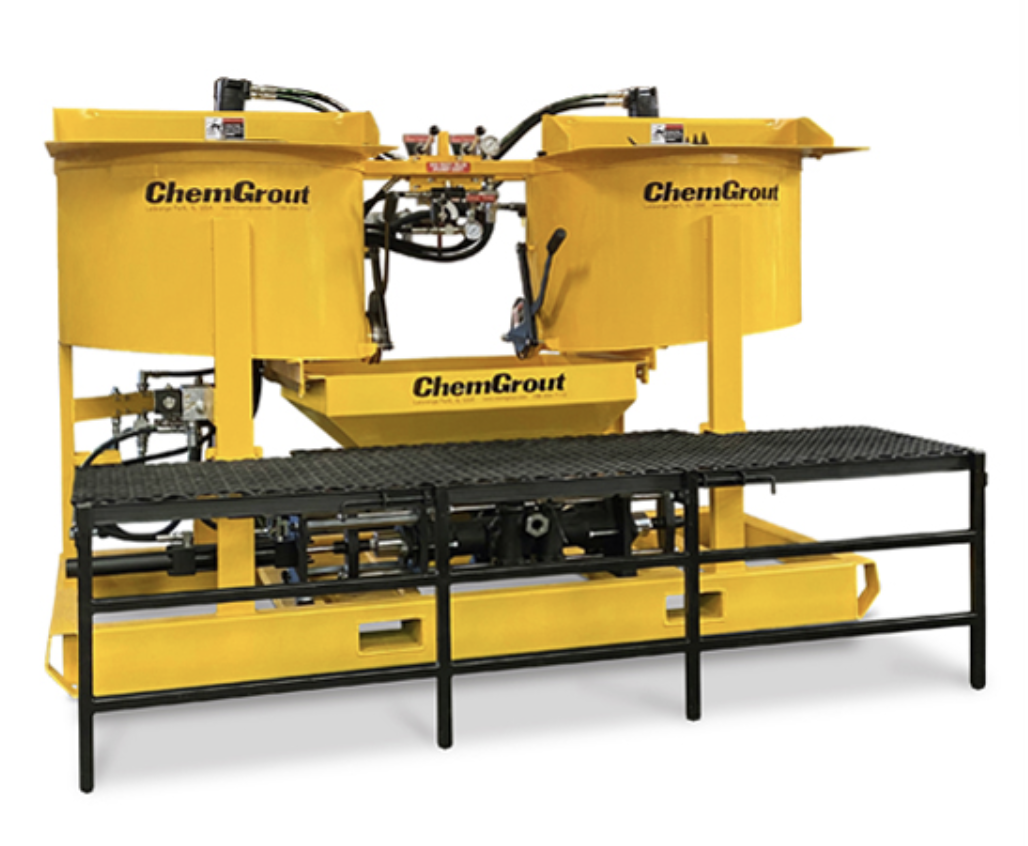

Chemgrout 580 High Pressure Series

Features

  • Features two 128-gallon (480 liters) mixing tanks
  • 50-gallon (189 liters) holding hopper
  • 3.5X8 double acting plunger pump

  • Each mixer is equipped with baffles, bag breakers and variable speed high-efficiency paddles that provide rapid mixing
  • The tank outlet valves are large slide gates that allow the thickest materials to fall easily into the pump hopper
  • All components are easily accessible for operating, cleaning, and maintenance.

Product Overview

Description

The ChemGrout CG-580/3.5X8 series is a high production volume, high pressure skid mounted grout plant.

Applications include: mining, tunnels, dams, soil compaction, rock grouting, water cut-off, voidfilling, soil anchors, contact grouting, marine/underwater, precast, slab undersealing, and slabjacking.

Product Specification Sheet

Product Specification Sheet
